Aligned nanofiber construction method comparison

Table comparing the common methods of fabricating aligned electrospun fiber membrane

	Drum	Disk	Parallel electrodes	Hybrid
Fiber Alignment	Ok	Good	Very Good	Good
Ease of setting up	Yes	Yes	Yes	No
Forming large membrane	Yes	No	No	Varies
Forming thicker membrane	Yes	Yes	No	Maybe
Setup cost	Average	Average	Low	High

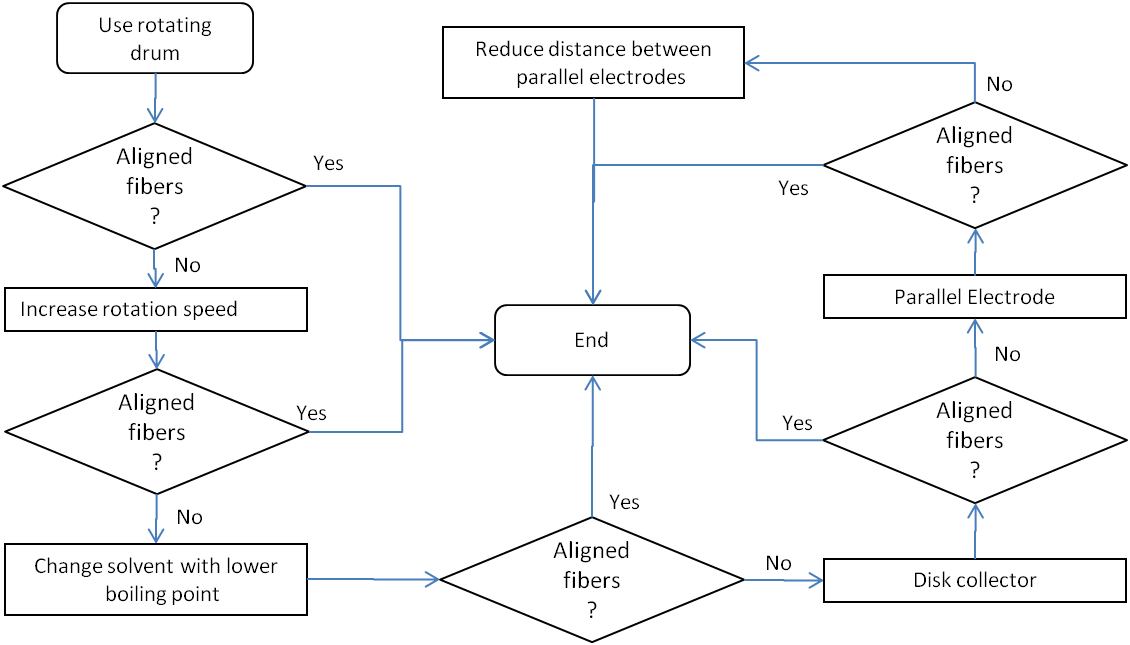

Flowchart for aligning nanofibers using basic concepts

Click image to enlarge
Download pdf



[+]
